Meets the EU Directive 2014/45/EU.

The hydraulic PD3600 play detector series (2 platforms) is designed to check quickly and efficiently most steering and suspension components of passenger cars and light trucks.

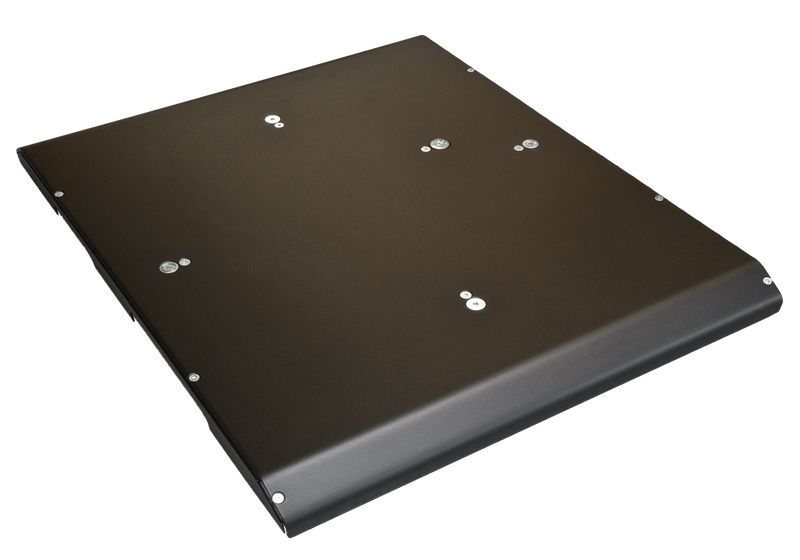

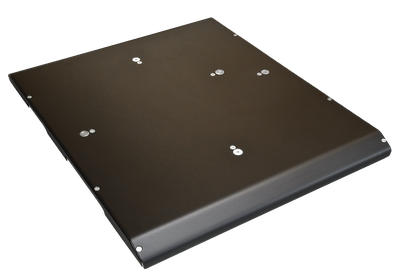

The PD3600 model consists of an hydraulic power unit, a control lamp (cable connected or wireless) and two platforms, one for the left wheel and one for the right wheel. The platform height is only 61 mm.

The surface mount model SM can be mounted on the floor or on a suitable lift with runways, e.g. a 4-post lift.

The flush mount model FM can be installed in the floor on both sides of an inspection pit.

Each platform is actuated by two hydraulic cylinders. Four models are available: the PD3610 (cable torch), PD3615 (=P3610 but with wireless RF torch) PD3620 (cable torch) and PD3630 (= PD3620 but with wireless RF torch). The model number determines the possible movements of the platforms as well as the type of control lamp supplied.
